Forged Fittings
At ARMODURO®, we specialize in producing high pressure forged fittings that are designed to meet the most demanding requirements of various industries. Our fittings are manufactured through some of the most reputable mills worldwide and are tested to ensure exceptional quality and performance under extreme conditions.
- Manufacturing Standards : ASTM, ASME, ANSI, MSS
- Dimensions : ANSI B16.11 / BS 3799 / B1.20.1 / ISO 7-1 / MSS SP 97 / MSS SP 83 / MSS SP 95
- Fitting Types : 90 Degree Elbow / 45 Degree Elbow / Equal & Reducing Tee / Full & Reducing coupling / Bushes / Plugs / Caps / Crosses / Unions
- End Connection : NPT / Socket Weld / BSPT
- Pressure Ratings : 3000LBS / 6000LBS / 9000LB
- Size Range : 1/8” to 4”
GRADES:
Stainless Steel
A182- F304/L, F316/L, F321
Carbon Steel
A105, A350 LF2
Duplex & Super Duplex
F51, F53, F55, F60, F61
Nickel & High Temperature
F310, F904L, UNS N08825, UNS N06625, UNS N08020,
Titanium Gr2
Forged Fittings Types:

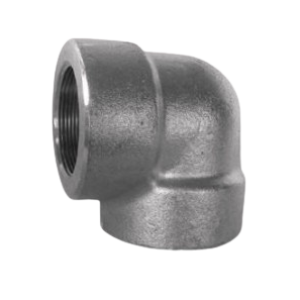

90° ELBOW
1/8” to 4” class 2000 threaded
1/8” to 4” class 3000 threaded & socket weld
1/8” to 4” class 6000 threaded
1/8” to 4” class 6000 socket weld
1/2” to 2” class 9000 socket weld

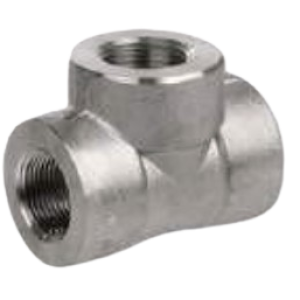

TEE
1/8” to 4” class 2000 threaded
1/8” to 4” class 3000 threaded & socket weld
1/8” to 4” class 6000 threaded
1/8” to 4” class 6000 socket weld
1/2” to 2” class 9000 socket weld

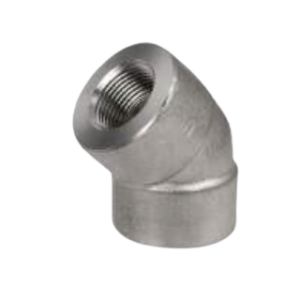

45° ELBOW
1/8” to 4” class 2000 threaded
1/8” to 4” class 3000 threaded & socket weld
1/8” to 4” class 6000 threaded
1/8” to 4” class 6000 socket weld
1/2” to 2” class 9000 socket weld

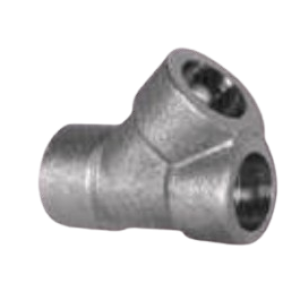

LATERAL
1/4” to 2” class 3000 threaded
1/4” to 2” class 3000 socket weld
3/8” to 1 1/2” class 6000 threaded
1/2” to 2” class 6000 socket weld
1/2” to 1 1/2” class 9000

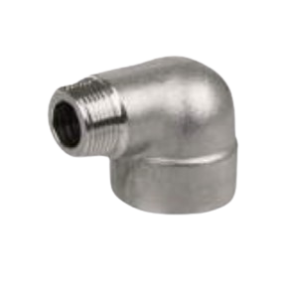

STREET ELBOW
1/8” to 2” class 3000 threaded
1/4”to1 1/2”class 6000 threaded

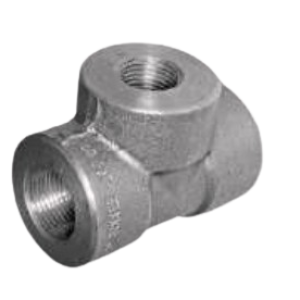

REDUCING TEE
3/4” to 2” class 3000 & 6000 socket weld
1/2” to 1 1 12” class 9000 socket weld
1/2” to 2” class 3000 threaded
1/2” to 1 1/2” class 6000 threaded
2” to 4” STD/XS butt weld threaded
2” to 4” STD/XS butt weld

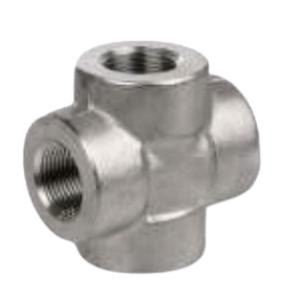

CROSS
1/8” to 4” class 2000, 3000 & 6000 threaded
1/8” to 4” class 3000 socket weld
1/8” to 4” class 6000 socket weld
1/2” to 2” class 9000 socket weld

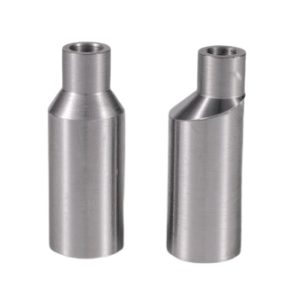

SWAGE NIPPLE
Concentric & Eccentric
PBE, TBE & BBE
SCH 5s to SCH 160
1/4” x 1/8” to 4” x 3 1/2” class 2000, 3000 & 6000

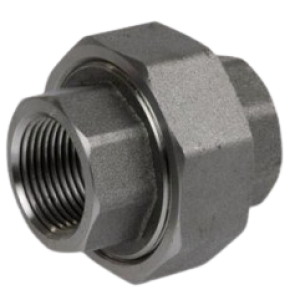

UNION
Threaded (M/F) & Socket Weld
1/4” to 3” class 3000 & 6000
MSS-SP-83, Rockwood & Lug Nut types

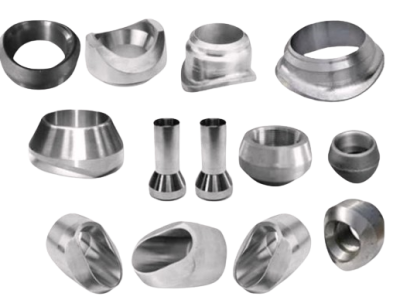

O-LETS:
Weldolet, Elbolet, Socketolet,
Sweepolet, Threadolet, Latraolet,
Nipolet
1/8” to 4” class 3000, 6000
Threaded, welded, SW, BW
PLUGS & BUSHINGS:
ROUND HEAD PLUG
1/8” to 4” nominal pipe size
HEXAGON PLUG
1/8” to 4” nominal pipe sizes
SQUARE HEAD PLUG
1/8” to 4” nominal pipe sizes
HEXAGON BUSHING
1/8” to 4” nominal pipe sizes
FLUSH BUSHING
1/8” to 4” nominal pipe sizes
REDUCER INSERTS
Socket weld reducer inserts available in class 3000, 6000 and 9000. Inserts stocked in various
materials. Consult factory for special applications.
TYPE 1
1/8” to 4” nominal pipe sizes
TYPE 2
Nominal pipe sizes from
1/2” x 1/4” to 2” x 1/4
COUPLINGS, REDUCERS & CAPS
PIPE CAP
1/8” to 4” class 3000
1/8” to 2” class 6000
threaded & socket welds

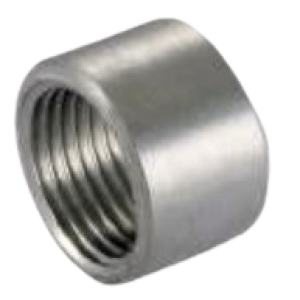

HALF COUPLING
1/8” to 4” class 3000 & 6000
threaded & socket weld
1/2” to 2” class 9000 socket
weld only

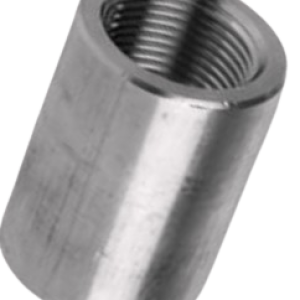

COUPLING
1 /8” to 4” class 3000 & 6000
threaded & socket weld
1/2” to 2” class 9000 socket
weld only

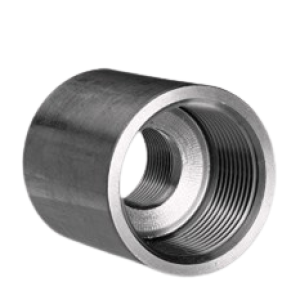

REDUCER
1/8” to 4” class 3000 & 6000
threaded & socket weld
1/2” to 2” class 9000 socket
weld only
